FUN!

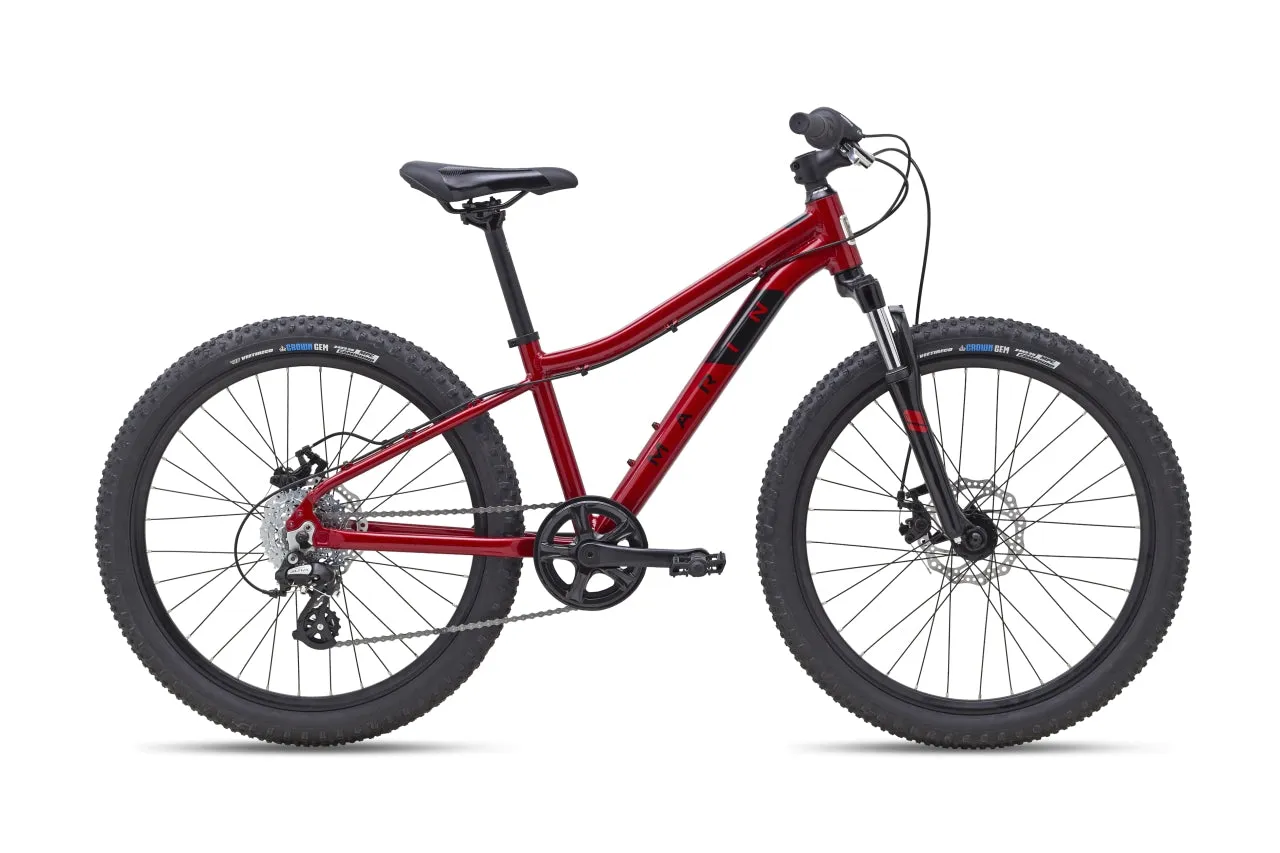

The Bayview Trail 24” and Hidden Canyon 20” bikes are built to get kids hooked on riding with quality components and fun graphics that will last for years of neighborhood and bike park service.
| 01. FRAME | Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts |
| 02. FRONT SUSPENSION | SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel |
| 03. RIMS | Marin, Double Wall Alloy |
| 04. HUB, REAR | Formula, 32H |
| 05. HUB, FRONT | Formula, 32H |
| 06. SPOKE, NIPPLES | 14g Stainless Steel |
| 07. TIRES | Vee Tire Crown Gem, 24”x2.25”, Wire Bead |
| 08. DERAILLEUR, REAR | Shimano Altus, 7-Speed |
| 09. DERAILLEUR, FRONT | - |
| 10. SHIFT LEVER | Shimano Revo Twist 1x7-Speed |
| 11. CRANKSET | Forged Alloy, 30T, 152mm, Ring Guard |
| 12. BOTTOM BRACKET | Sealed Cartridge Bearings, Square Taper |
| 13. CHAIN | KMC Z50 |
| 14. CASSETTE | Shimano HG-20 7-Speed, 12-32T |
| 15. BRAKE, FRONT | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| 16. BRAKE, REAR | Power CX7 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor |
| 17. BRAKE LEVERS | Kids Specific Short Reach Alloy Lever |
| 18. HANDLEBAR | Marin Riser, 30mm Rise, 590mm Width |
| 19. STEM | Marin Alloy, 60mm |
| 20. GRIPS | Marin Dual Density |
| 21. HEADSET | FSA, Threaded |
| 22. SEATPOST | Marin Alloy, 27.2mm |
| 23. SADDLE | Marin Kids MTB |
| 24. PEDALS | Kids Specific Nylon Pedal |
| ONE SIZE | |
|---|---|
| STACK | 502.75 |
| REACH | 331.92 |
| HEADTUBE ANGLE | 70° |
| HEADTUBE LENGTH | 105 |
| SEATTUBE ANGLE | 73° |
| SEATTUBE LENGTH | 321 |
| TOPTUBE EFFECTIVE | 485 |
| BB HEIGHT | 283 |
| BB DROP | 25 |
| CHAINSTAY | 400 |
| WHEELBASE | 946.97 |
| STANDOVER HEIGHT | 581.19 |
| FORK OFFSET | 40 |
| SEATPOST DIAMETER | 27.2 |
| HANDLEBAR WIDTH | 590 |
| STEM LENGTH | 70 |
| CRANK LENGTH | 152 |
